2234 Ultrasonic Routes

MS-2234: Route Data Collector iPadOS® version

  • Version: 1.10 (b.72)
  • Author: SensOS
  • Created: 04 Feb, 2022
  • Update: 22 Nov, 2022

If you have any questions that are beyond the scope of this document, Please feel free to email via info@sens-os.com

Description

The MS-2234 is a tablet-based route data collector software that allows connectivity with different Condition Based Monitoring devices, such as wireless accelerometers, thermal image cameras, ultrasonic devices, etc. It also allows to perform visual inspection tasks using the tablet's camera and manual data entry.

The MultiSens Cloud platform allows the creation of routes and interaction with the MS-2234 App. Data from each route can then be uploaded to the cloud platform for trending, analysis and Reporting. See more details of the MultiSens Cloud platform in the MS-Cloud Documentation.

This section will focus on the route-based ultrasonic data collection feature.

Compatibility

The MS-2234 Route Data collector is compatible with the following Ultrasonic devices:

  1. CTRL UL101 Kit

Routes Dashboard

  1. Open the MS-2234 App and login (the first login will require Internet connectivity). Once the user is logged in for the first time the credentials will be stored in the device if the "Remember Password" switch is set to ON. After this, user can log in with or without Internet connectivity.

  2. Once a Route is created in the MS-Cloud platform it will be available to download in the tablet. Make sure the tablet is connected to the Internet for this process. Available routes in the cloud will show on the left side of the screen.

  3. Tap on a route to select it, on the right panel options the download button will be now enabled, as shown below. Click on the "Download from Cloud" button, the selected route will be downloaded in the device.

  4. Once the route is downloaded it will appear on the right side of the screen be remain local in the device, during data collection Internet connectivity will not be required.

  5. Tap on the downloaded routes to select one, the right panel buttons (view, upload, collect and remove) will enable

  6. Pressing the View (magnifier icon) button in the right panel (previous screenshot), will open a view showing all the points in the selected route. A white background cell means the point is in the route, gray background is for off-route points. The cyan background indicates the point is already measured. The view will also show the total number of points and the advance.

  7. Pressing the 'Upload to Cloud' button, will open a new view showing all the point status and with the option to upload all the collected data to the MS-Cloud. Pressing the Upload button in this view will send data to the cloud, the user can decide to leave the route (partial upload) or to remove the route after uploading.

  8. Pressing the 'X' (remove) button, will remove the selected route from the device. The route will be available again to be downloaded but it will not be local anymore.

  9. Pressing 'Collect Data' (Motor icon) button, will open the data collection user interface. The initial view will be a picture or diagram of the asset with instructions to the technician (the initial view can be changed to default to vibration, thermal image, etc in the main configuration, see Configuration item 2 for more details).

Navigating the Route

  1. The left Panel buttons will allow the user to select different CBM methods (from top to bottom: Ultrasonic, Annotations, Asset Diagram, Vibration, Photo & Thermal Imaging.

  2. The right panel will allow the following options: from top to bottom: 'M▶︎' move to next Machine, 'P▶︎' advance to next Route Point, 'Magnifier' view collected data, 'Hamburger Menu' opens a pop-up with the list of points (see item 3 below), '◀︎M' move to previous Machine, '◀︎P' go to previous Route Point

  3. Pressing the hamburger menu button on the right panel will open a pop-up with the list of all route and off-route points. The user can search or scroll to any point and jump directly to it. This is the only way to access the off-route points.

  4. While navigating the left control panel buttons will show bubbles indicating if the reading was done '✔︎' or skipped '✖︎' for each of the CBM methods.

Collecting Ultrasound

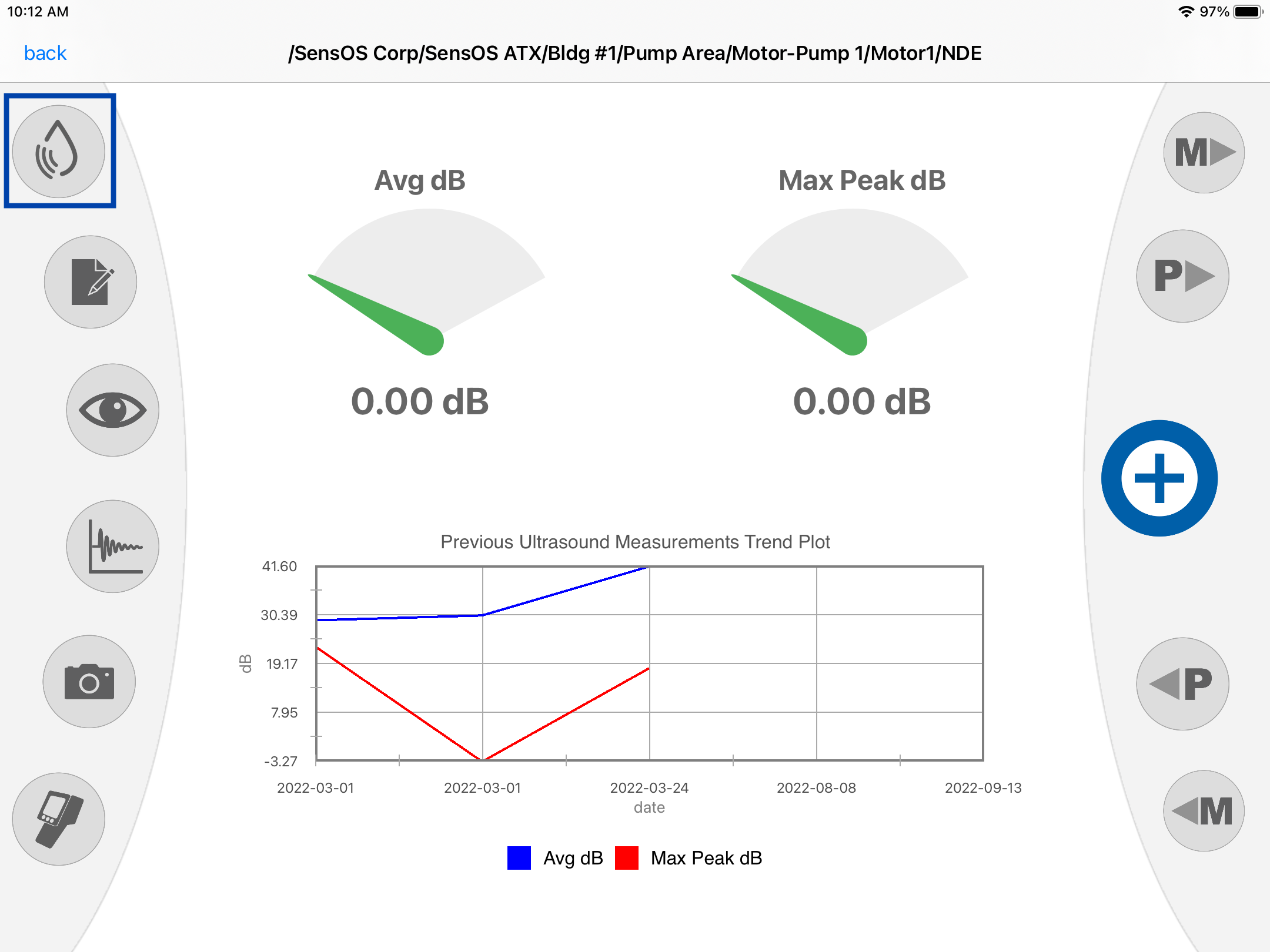

  1. Press on the Ultrasonic button to show the Utrasonic User Interface View. The trend plot will display the last 5 peak and Avg readings, for comparison purposes.

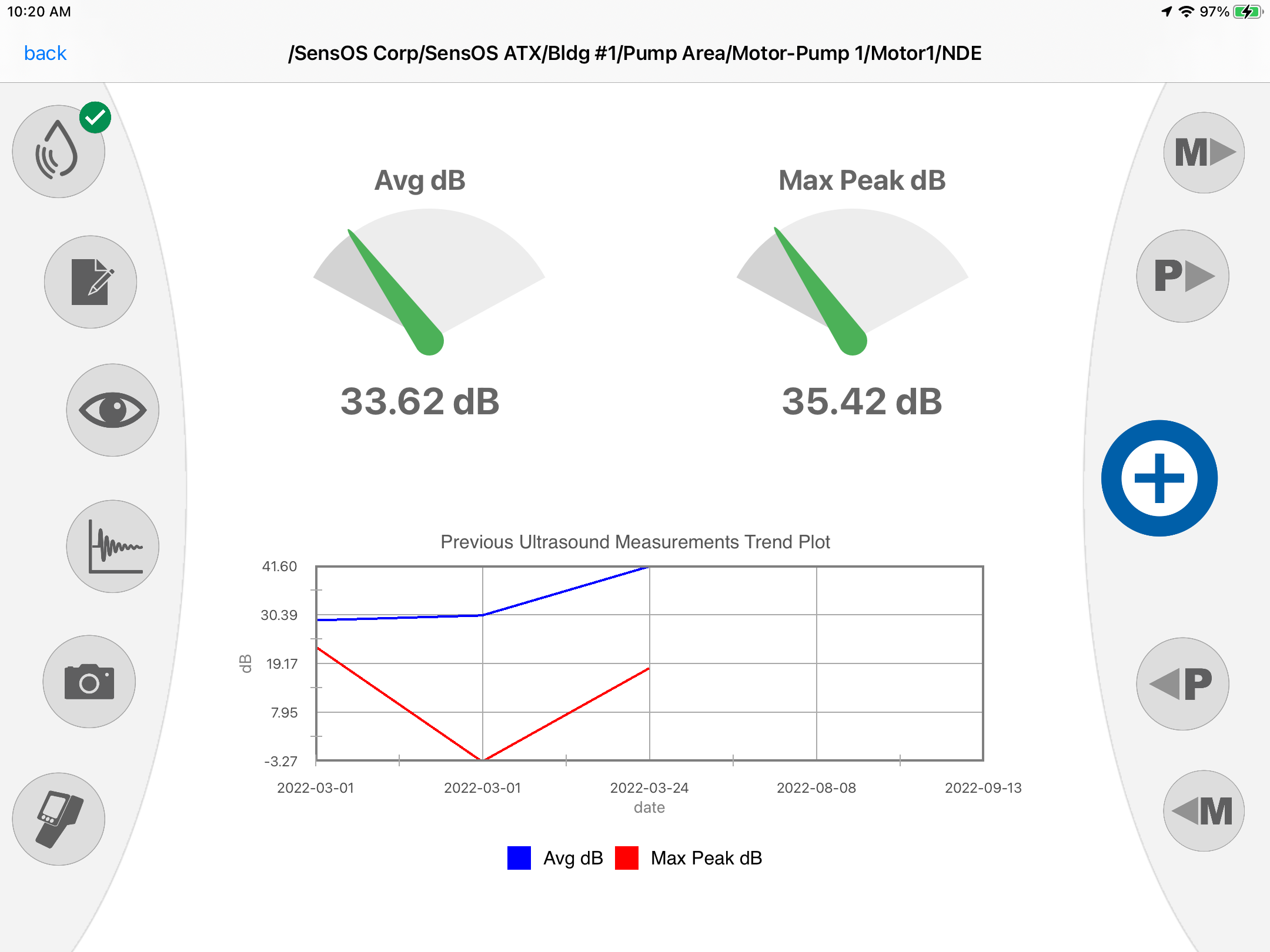

  2. Navigate to the point to be measured. Once the ultrasonic device is connected the collect reading "➕" button will be enabled. Place the sensor on the point to be checked and press the "➕" button. User can press the button any number of times to check repeatability, only the last reading will be saved.

Configuration

  1. From the Main menu, click the top left menu button to open the left drawer with more options. Select 'Configuration' from the left menu

  2. The main configuration will allow the user to: i) Set the unit to metric or imperial, ii) Set the amplitude of the vibration to RMS or Pk, iii) Set the spectrum frequency units to CPM, Hz or orders, iv) Set the last readings trend default to acceleration or velocity, v) Set to manually advance to the next uncollected point in the route, vi) Set the initial screen that will appear when goinf into the route, vii) Set the Data Collector user interface type, viii) Select the type of vibration sensor, and ix) Select the type of thermal image camera.

Changelog

See what's new added, changed, fixed, improved or updated in the latest versions.

Version 1.10 b.72 (22 Nov, 2022)

  • Optimized Optimized for iPadOS 16

Version 1.09 b.70 (15 Nov, 2022)

  • Fixed Support for FLIR ONE® Edge Wireless Thermal Image Camera

Version 1.08 b.69 (04 Aug, 2022)

  • Fixed Axes orientation for Sensoteq Chi BLE sensors

Version 1.05 b.66 (18 Mar, 2022)

  • Added Thermal Image streamer for FLIR wireless thermal image cameras

Version 1.04 b.65 (04 Mar, 2022)

  • Added Discrete frequency calculations to the vibration viewer

Version 1.02 b.59 (24 Feb, 2022)

  • Fixed Thermal Image dynamic temperature scale & Route Data from EI-WiSER™3X

Version 1.01 b.57 (04 Feb, 2022)

Initial Release
