Vibration Meter

MS-3933: Vibration Analysis Studio Android™ version

  • Created: 18 May, 2021
  • Update: 21 Sep, 2022

If you have any questions that are beyond the scope of this document, Please feel free to email via info@sens-os.com

Description

The Vibration Meter will display the overall vibration in Acceleration and Integrated ISO Velocity.

Compatibility

This module is compatible with the following sensors:

  1. EI_WiSER™3X Mini (3-Axis)
  2. SensorWorks BluVib P-V-T (1-Axis)
  3. SensorWorks BluVib M-V-T-3 (3-Axis)

Vibration Meter

  1. From the main dashboard, open the left drawer (Click the hamburger button) to see the options menu.

  2. On the left drawer menu, select "Sensor Selection"

  3. On the Sensor Selection view, click on the sensor.

  4. Open the left drawer again and click on "Analyze Options" to go back to the list of Tests.

  5. On the main dashboard, select the "Vibration Meter" option.

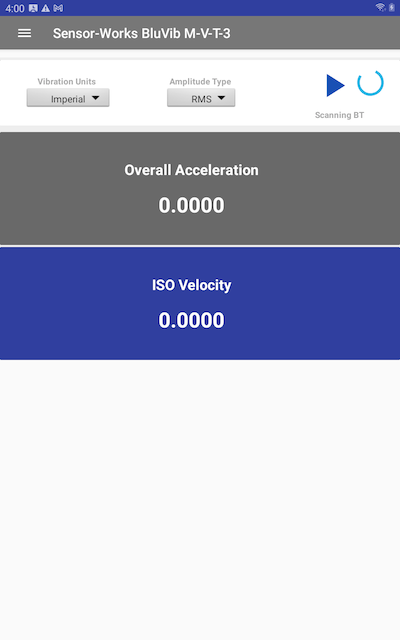

  6. The Vibration Meter view will open and will start scanning for the Sensor.

    7. Note: For simplicity, a single-channel sensor will be used to explain all the functionalities

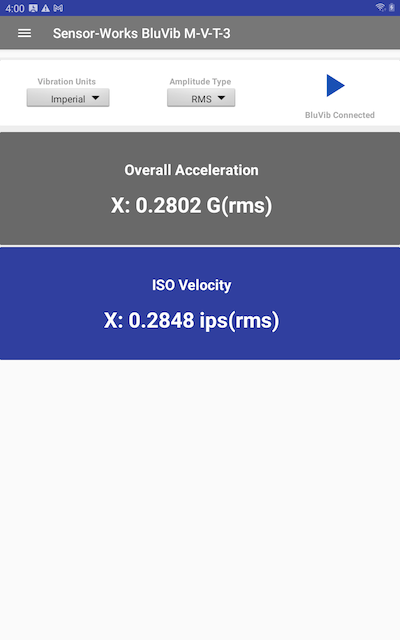

  7. Once connected to the sensor, place it on the asset and click the start ▶︎ button to collect and process the results. The units can be changed between Metric/Imperial, and the amplitude can be toggled between RMS/Pk.

    8. Note: The sampling settings are fixed to match the ISO requirements for velocity readings.

Changelog

See what's new added, changed, fixed, improved or updated in the latest versions.

Version 1.18 b.94 (21 Sep, 2022)

  • Optimized Optimized for Android 11

Version 1.01 b.05 (18 May, 2021)

Initial Release
